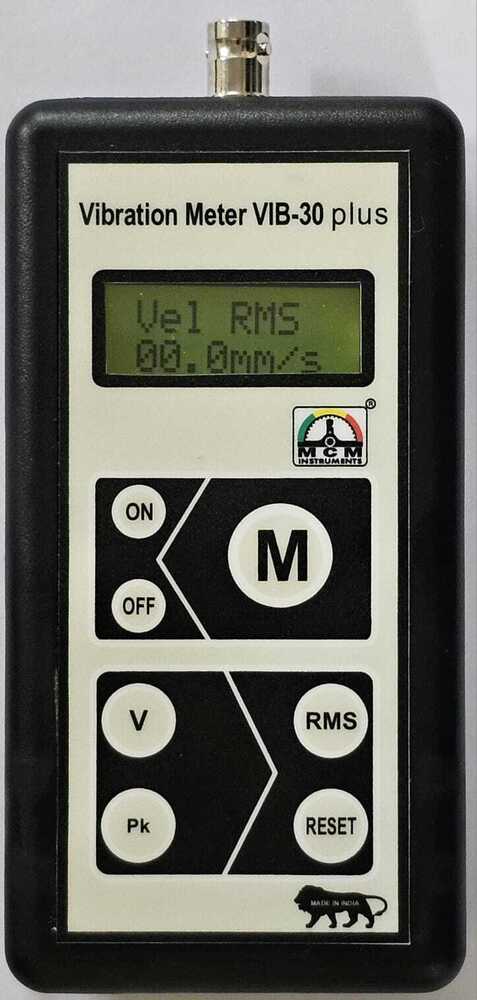

Vibration Meter VIB-30 PLUS

Vibration Meter VIB-30 PLUS

Product Details:

  • Power Supply Electric
  • Color Black
  • Dimension (L*W*H) 135x70x25 Millimeter (mm)
  • Usage Industrial
  • Product Type Vibration Meter VIB-30 PLUS
  • Weight 200 Grams (g)
  • Click to View more
X

Vibration Meter VIB-30 PLUS Product Specifications

  • 135x70x25 Millimeter (mm)
  • Black
  • 200 Grams (g)
  • Vibration Meter VIB-30 PLUS
  • Electric
  • Industrial

Vibration Meter VIB-30 PLUS Trade Information

  • All India

Product Description

  Vibration Meter VIB-30Plus

Features :

  • Measuring Vibration Velocity & Acceleration
  • True RMS measurement & Peak
  • Sealed Membrane key pad
  • Micro Controller based
  • Back Light Display
  • Auto Off
  • Battery Low Indication
  • Pocket size and Light weight



Vibration Meter VIB-30Plus is Micro controller based and has been designed as simple diagnostic tool for preventive maintenance. The instrument and the monitoring techniques are based on the recommendations of ISO standard.


Need based maintenance is the latest trend of industry with which maintenance costs are low and life machinery is most optimum. Condition monitoring is basic need for maintenance. The above useful measurement is possible with VIB-30Plus. Velocity mode allows a user to perform basic vibration analysis.

Technical Data :

  • Velocity Measuring Range: 0.1 - 199.9 mm/s True RMS & 282 mm/s PEAK
  • Resolution: 0.1mm/s
  • Accuracy: + (2% + 0.1mm/s)
  • Frequency response : 10HZ - 1KHZ
  • Temperature Range 0-55C
  • Power Supply: 9V - 6 F22
  • Display: 2 x 8 Dot Matrix LCD Large Characters with back light
  • Casing ABS
  • Auto Off: Yes
  • Battery Low Indication: Yes
  • Weight : 200gms
  • Size : 135x70x25mm


Standard Supply :

Vibration Tester VIB-30Plus with Protective Pouch,
Vibration Transducer (Accelerometer) - Magnetic Base -Hand Held Probe Rod - Low Noise Cable with Connectors (1.5 Mtrs),
Manual with Warranty/Guarantee Certificate,
9V Battery (Alkaline),
Test & Calibration Report & Carry Case.
