Machine Conditioner-808
Product Details:
X
Product Description

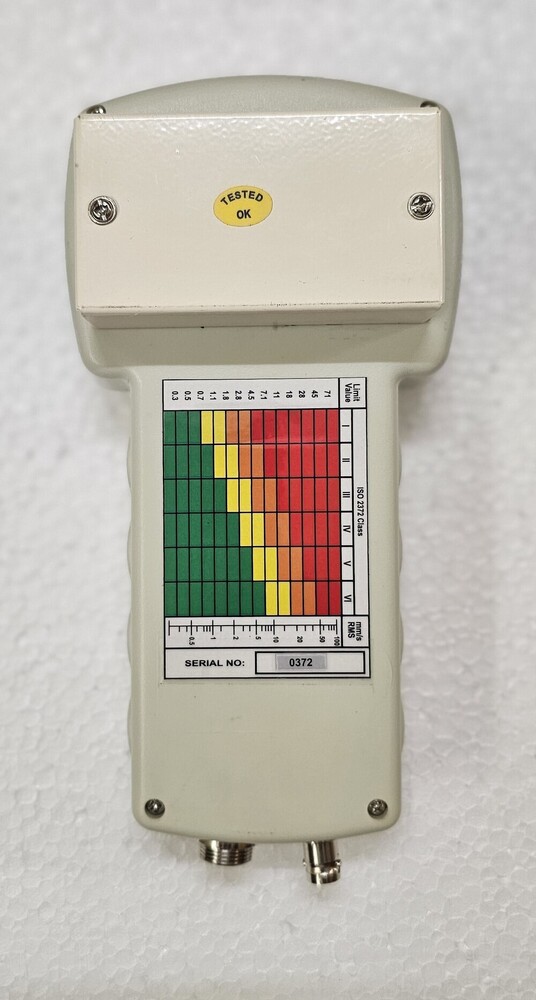

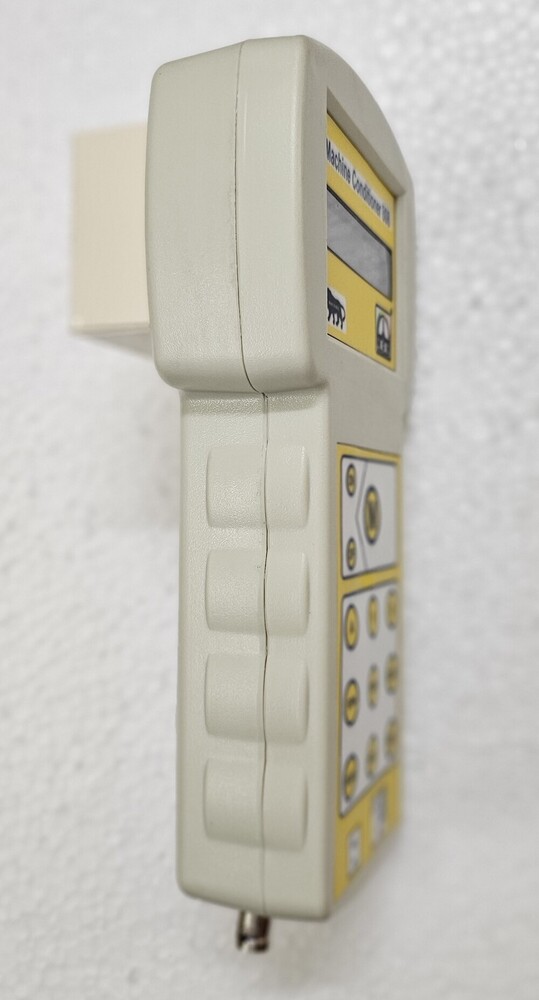

Machine Conditioner 808
Being a quality oriented organization we are engaged in offering a wide gamut of Machine Conditioner . These products are manufactured with high precision using high quality raw material and cutting-edge technology by our team of professionals. Offered products are mainly used in industries to monitor condition of machines for maintenance need. Further, these Machine Conditioner can be availed by our prestigious clients in varied specifications as per their requirement at highly competitive price.
Features:
- Vibration Measurement all three parameter (Displacement, Acceleration & Velocity)
- Laser Tachometer measurement
- Infrared Temperature measurement
- Current Clamp measurement
- Electronic Stethoscope (Noise)Test (Locate the sound source quickly and accurately in a generally noisy environment with headset)
- Suitable for monitoring machinery vibration caused by imbalance, misalignment & gear faults
- Micro controller based
- Battery Low Indication
- Data Hold
- Back light LC Display
- Small size & Light weight
- Auto Power off
Technical Specifications :
| Vibration Velocity:0.1 - 200 mm/s True RMS | Resolution: 1Amp |
| Acceleration:0.1 - 200m/Peak | Accuracy: + 2% |
| Displacement:0.5 - 2000 Peak - Peak | Clamp Jaw size: 16mm dia. |
| Resolution: 0.1 mm/s | Electronic Stethoscope(Noise)Tester Function: |
| Accuracy: 2% + 0.1 mm/s | Head set: Stereo type |
| Frequency response: 10 - 1khz | Contact Probe rod: 290mm Stainless Steel rod |
| Laser Tachometer measuring Range:10 - 30000 rpm | Power: Recharge Battery Pack with Charger |
| Resolution:1 rpm | Display: 2 x 16 line back light dot matrix LCD |

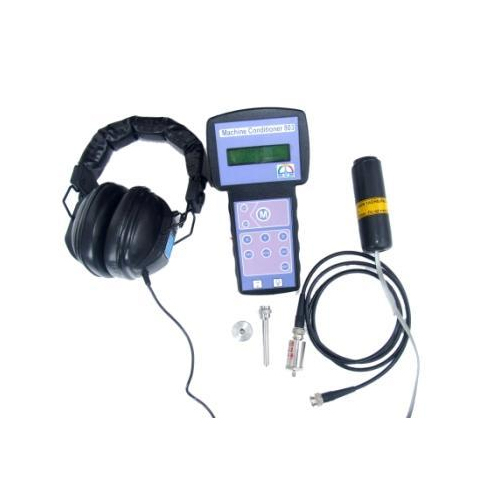

Standard Supply :
- Machine Conditioner 808 with Protective Pouch,
- Vibration Transducer (Accelerometer) VSF-1F, Magnetic Base, Low Noise Cable with connectors (1.5Mtrs),
- Head Phone & Contact Tip,
- Laser Tachometer Probe with Reflecting Tapes (3 Strips),
- Infrared Temperature Probe,
- Current Clamp Probe,
- Charger,
- Manual,
- Test & Calibration Report with Warranty/Guarantee Certificate, &
- Carry Bag.
