Product Description

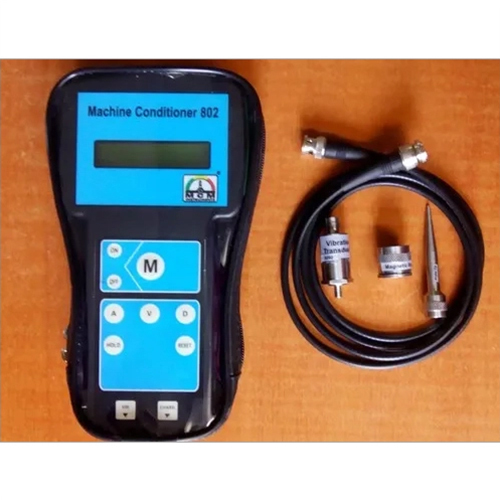

Machine Conditioner- 802T

(Suitable for Monitoring Machinery Vibration caused by imbalance, Misalignment & Gear Faults)

Features

  • Vibration Measurement all three Parameters
  • (Velocity, Acceleration & Displacement)
  • Infrared Temperature measurement  Microcontroller based
  • Battery Low Indication
  • Data Hold
  • Back light LC Display
  • Small size & Light weight
  • Auto Power off

Technical Specifications



  • Vibration Velocity      0.1 - 199.9 mm/s True RMS
  • Accuracy         Â± 2% + 0.1 mm/s
  • Power  Rechargeable Battery
  • Acceleration   0.1 - 199.9 m/s² Peak
  • Accuracy         Â± 2% + 0.1 m/s²
  • Display           2 x 16 line back light dot matrix LCD
  • Displacement  1.0 -2828 m Peak- Peak
  • Accuracy         Â± 5%
  • Operating Temp. Range         0 - 55ºC
  • Resolution      0.1 mm/s
  • Casing ABS
  • Frequency response    10HZ -1KHZ
  • Sealed Membrane key pad
  • Infrared Temperature Range  0 - 550°C
  • Resolution      1°C
  • Accuracy         Â± 2% of reading or 2ºC
  • Field of View  D/S = Approx. 8:1 ratio
  • Input Connectors        BNC
  • Resolution      1°C
  • Size     200x100x40 mm
  • Accuracy         Â± 2% of reading or 2ºC
  • Weight 600gms (Approximately)
  • Field of View  D/S = Approx. 8:1 ratio

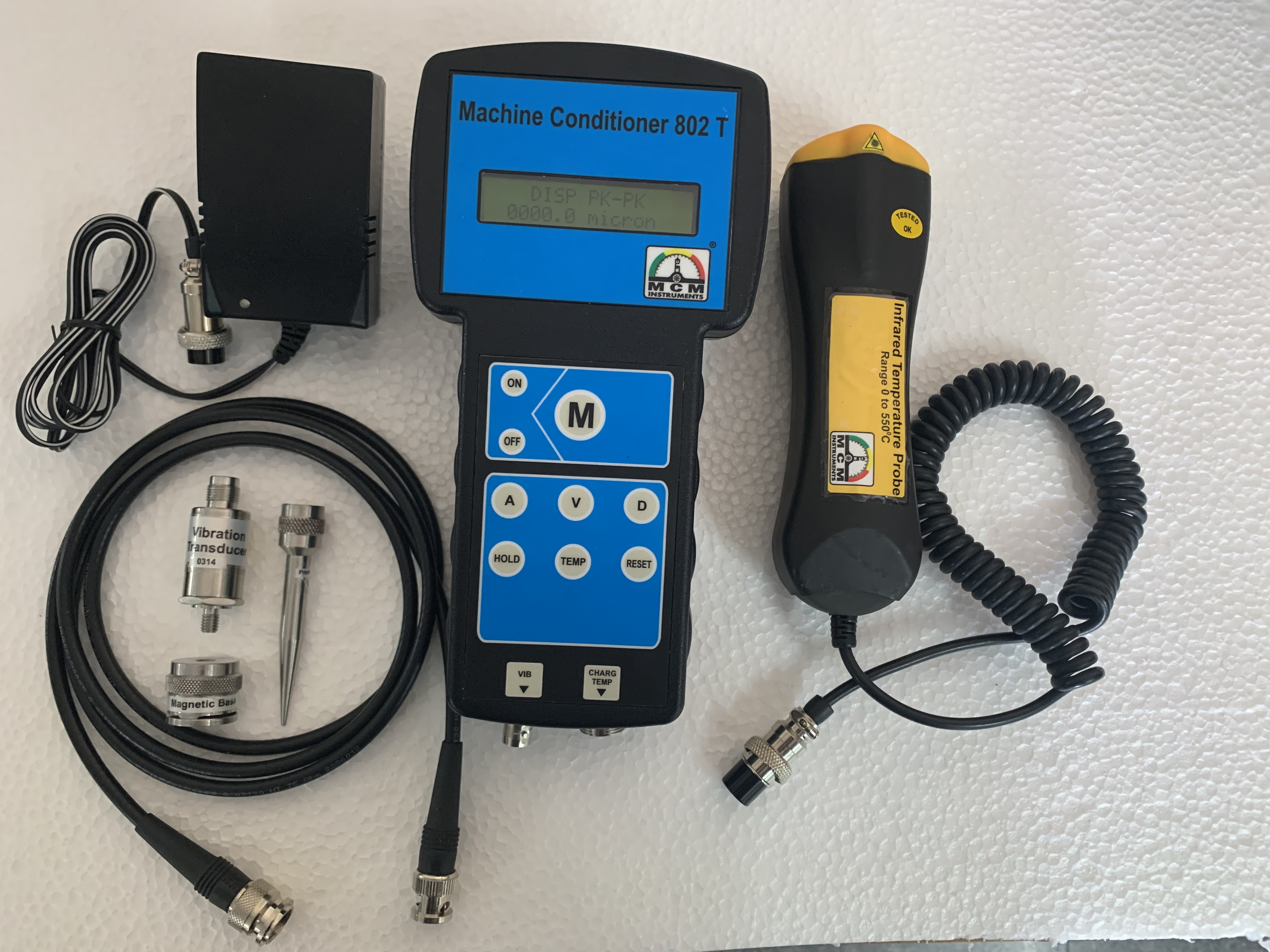

Standard Supply :

01) Machine Conditioner 802T with Protective Pouch,

02) Vibration Transducer (Accelerometer) VSF-1F, Magnetic Base, Low Noise Cable with Connectors (1.5 mtrs),

03) Hand Held Probe Rod,

04) Charger,

05) Infrared Temperature Probe,

06) Manual,

07) Test & Calibration Report with Warranty/Guarantee Certificate &

 08) Carry Bag.
