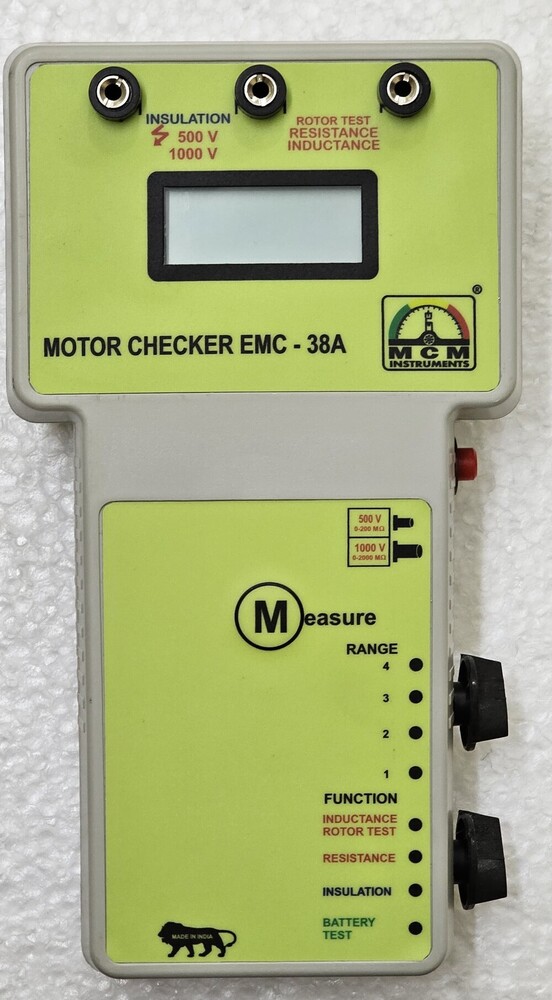

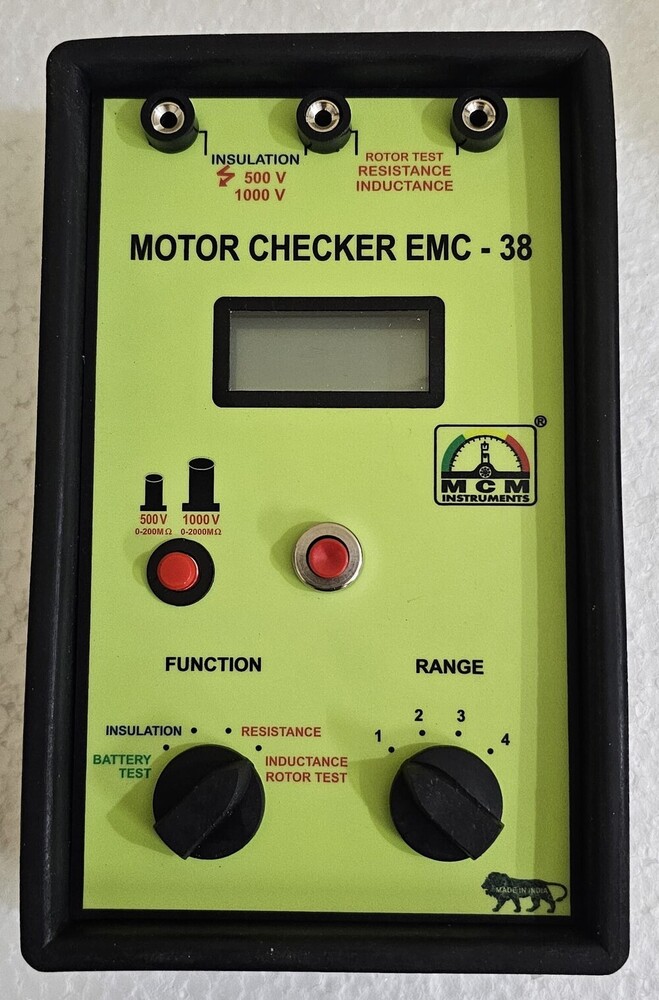

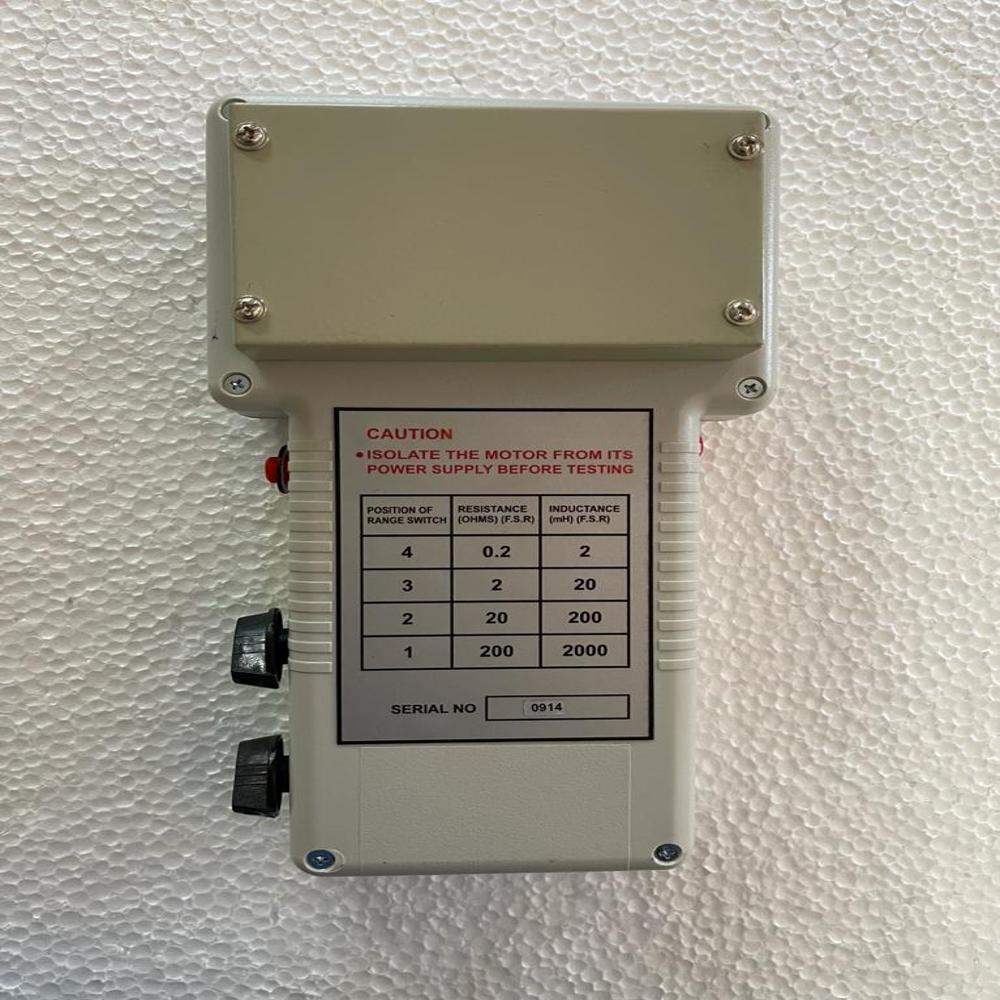

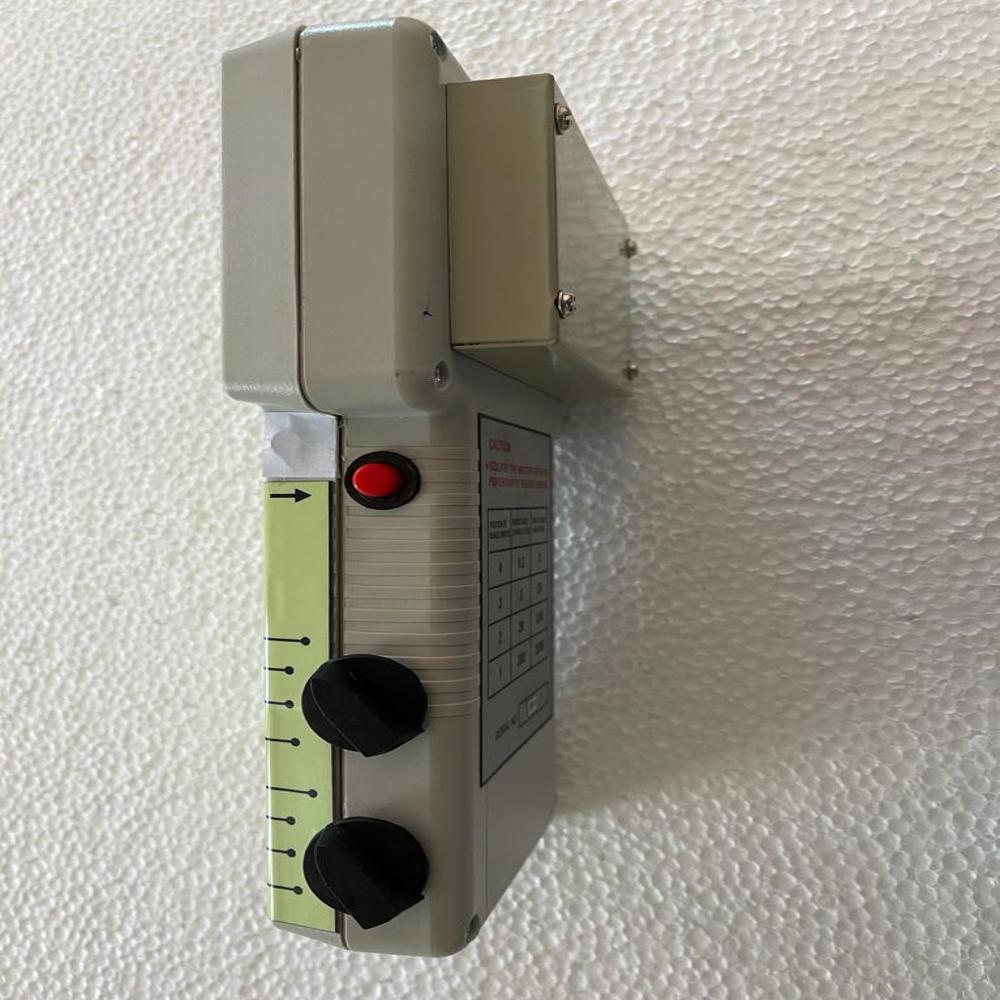

Digital Motor Checker EMC-38AC

About Digital Motor Checker EMC-38AC

DIGITAL MOTOR CHECKER EMC-38AC

Features:

• Very handy
• Light Weight
• Insulation Resistance (IR) Measurement
• Identify open and short circuits / loose connections in a winding coil
• Identify interterm shorts
• Detect rotor bar problems without dismantling the rotor
• Inductance of the winding with respect to
• different positions for rotor for detecting blow holes or cracks in the rotor bars.
• Simple operation, accurate & quick assessment of
• motor condition.
• Low battery Indication

PREDICTIVE MAINTENANCE:

Regular testing can identify developing faults before a failure occurs. All measurement data can be trended for predictive maintenance condition monitoring. By making proactive repairs and eliminating unscheduled down- time, pla t productivity is greatly improved.

EMC-38AC is a Digital portable di gnostic tool for Electrical Engineer and is used for quick on - site checks of electric motor and other three - phase machines.

A reduction in machine performance, such as inefficient operation or tripping of overloads, may indicate mechanical or electrical

faults. If the fault is electrical the EMC-38AC

ill immediately detect it, without dismantling the equipment. The instrument has three separate operating modes to measure different types of faults like fully insulation, open circuits / loose connections, short circuits, Ground faults and rotor defects. Motor insulation is tested with a high voltage at 500V & 1000V DC supplied by the instrument.

Motor Checker EMC-38AC finds the faults you cant see with any other hand held instrument

• Turn -to-turn , coil-to-coil and phase-to-phase faults
• Open phase
• Burned or cont minated winding
• Poor Connections
• Broken / Cracked rotor bars
• Grounded windings
• Cable faults.

Technical Details
