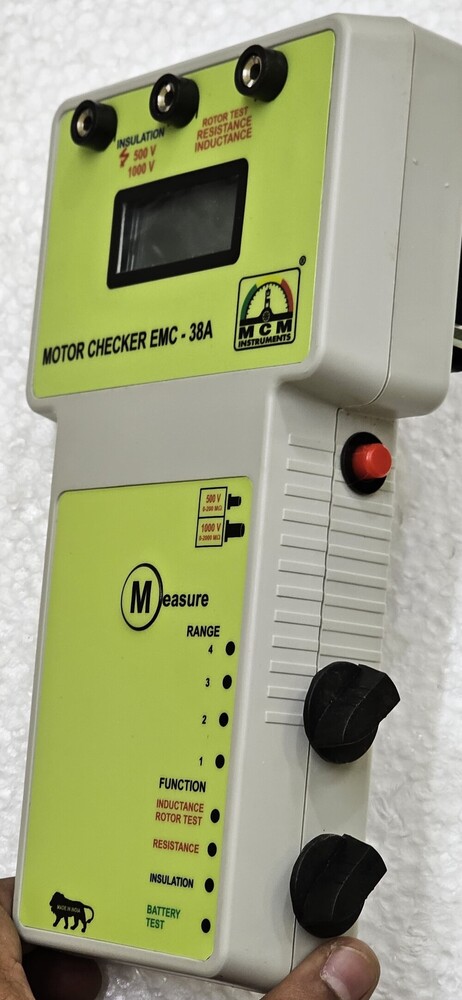

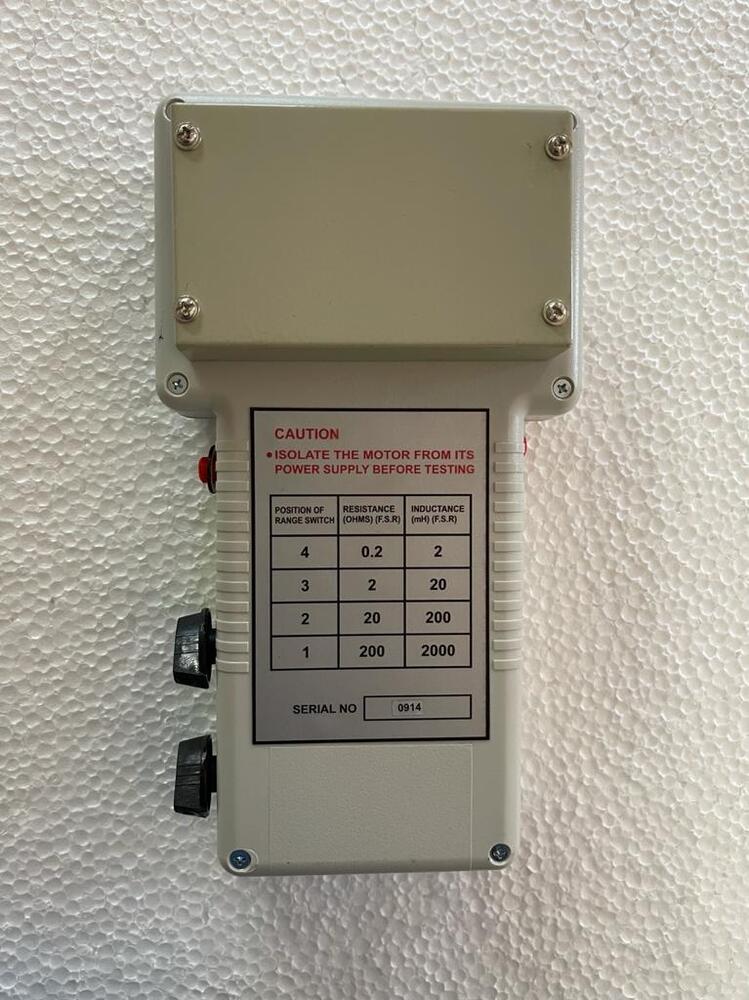

Digital Motor Checker EMC-38A

About Digital Motor Checker EMC-38A

Digital Motor Checker EMC-38A

Features:

• Very handy
• Light Weight
• Insulation Resistance (IR) Measurement
• Identify open and short circuits / loose connections in a winding coil
• Identify interterm shorts
• Detect rotor bar problems without dismantling the rotor
• Inductance of the winding with respect to different positions for rotor for detecting blow holes or cracks in the rotor bars.
• Simple operation, accurate & quick assessment of motor condition.
• Low battery Indication

PREDICTIVE MAINTENANCE:

Regular testing can identify developing faults before a failure occurs. All measurement data can be trended for predictive maintenance condition monitoring. By making proactive repairs and eliminating unscheduled down- time, plant productivity is greatly improved.

EMC-38A is a Digital portable diagnostic tool for Electrical Engineer and is used for quick on - site checks of electric motor and other three - phase machines.

A reduction in machine performance, such as inefficient operation or tripping of overloads, may indicate mechanical or electrical faults. If the fault is electrical the EMC-38A will immediately defect it, without having to dismantle the equipment. The instrument has three separate operating modes to measure different types of faults like fully insulation, open circuits / loose connections, short circuits, Ground faults and rotor defects. Motor insulation is tested with a high voltage of 500V & 1000V DC supplied by the instruments

• Motor Checker EMC-38A finds the faults you can't see with any other hand held instrument
• Turn -to-turn, coil-to-coil and phase-to-phase faults
• Open phase
• Burned or cont minated winding
• Poor Connections
• Broken / Cracked rotor bars
• Grounded windings
• Cable faults.

Technical Specification :

A) INSULATION RESISTANCE:	0 - 200 M at 500 V DC +/- ( 2% + 1digit), 0.1 M  resolution 0 - 2000 M at 1000 V DC +/- ( 2% + 1 digit), 1 M  resolution
B) RESISTANCE	RANGE	RESOLUTION	TOLERANCE
	0 - 200 milli	0.10 milli	+/-2%
	0 - 2	0.001	+/-2%
	0 - 20	0.01	+/- 2%
	0 - 200	0.10	+/- 2%
C) INDUCTANCE	RANGE	RESOLUTION	TOLERANCE
	0 - 2 mH	0.001 mH	+/- 3%
	0 - 2 mH	0.01 mH	+/- 3%
	0 -200 mH	0.1 mH	+/-3%
	0 - 200 mH	1 mH	+/-3%

• Display: 3 1/2 LCD
• Temp. Operating Range:0- 55 C
• Size: 237x131x45
• Weight: 500gms
• Power: 1.5V x 6 AA size cells
• Enclosure: Moulded in high impact ABS

Standard Supply:

• Motor Checker EMC-38A
• Test Leads (Clips) - 1set
• Batteries - 6 nos
• Instruction Manual with Warranty / Guarantee Certificate
• Test & Calibration Report
• Carry Case
