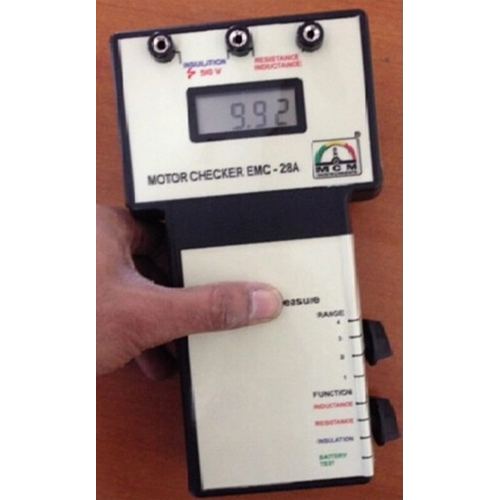

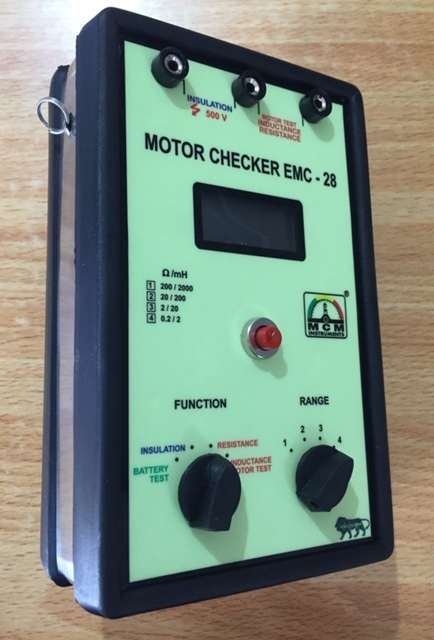

Digital Motor Checker EMC-28
Digital Motor Checker EMC-28
Digital Motor Checker EMC-28
Digital Motor Checker EMC-28
Digital Motor Checker EMC-28
Digital Motor Checker EMC-28

Digital Motor Checker EMC-28

Digital Motor Checker EMC-28 Specification

  • Product Type
  • Digital Motor Checker EMC-28
  • Frequency (MHz)
  • 50 Hertz (HZ)
  • Dimension (L*W*H)
  • 210x125x65 Millimeter (mm)
  • Weight
  • 1000 Grams (g)


Digital Motor Checker EMC-28 Trade Information

  • Main Domestic Market
  • All India


About Digital Motor Checker EMC-28

Digital Motor Checker EMC-28

Features:

Insulation Resistance (IR) Measurement
Identify open and short circuits / loose connections in a winding coil

Identify inter turn shorts.
Detect rotor bar problems without dismantling the rotor
Inductance of the winding with respect to different positions for rotor for detecting blow holes or cracks in the rotor bars.
Simple operation, accurate & quick assessment of motor condition.
Shock Proof Rubber Casing

Fast Checks of On-site Motors:
EMC-28 is a Digital portable diagnostic tool for Electrical Engineer and is used for quick on - site checks of electric motor and other three -phase machines. A reduction in machine performance, such as inefficient operation or tripping of overloads, may indicate mechanical or electrical faults. If the fault is electrical the EMC-28 will immediately detect it, without having to dismantle the equipment.

The EMC-28 may also be used to check quality and condition of motors which have been in storage before they are installed. The instruments has three separate operating modes to measure different types of faults like faults like fully insulation, open circuits / loose connections, short circuits and rotor defects. Motor insulation is tested with a high voltage at 500V DC supplied by the instrument.

Technical Specifications :

Insulation Resistance: +/- 2% + 1 digit

0-200 Meg ohms at 500 VDC,

Resistance: +/- 2% (4 ranges)

0-200 ohms, 0-2 ohms, 0-20 ohms,0-200milli ohms

Inductance: +/- 2% (4 ranges)

0-2000mH, 0-200mH, 0-20mH, 0-2mH

Display :

31/2 LCD

Size:

210x125x65

Weight:

1000gms

Power :

1.5V x 6 AA Size batteries


Standard supply :

1) Motor Checker EMC-28

2) Test Leads (Clips)-1set,

3) Batteries-6 no.s,

4) Test & Calibration Report with Warranty/ Guarantee Certificate,

5) Manual &

6) Carry Case.
