Digital Sound Level Meter

Digital Sound Level Meter

Product Details:

X

Product Description

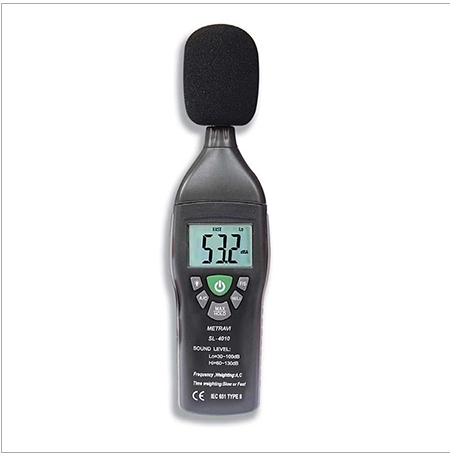

Digital Sound Level Meter SL-4010

We are offering our clients a wide range of excellent quality Digital Sound Level Meter. This level meter is manufactured by our professionals with high precision using high quality raw material and progressive technology. It helps in accommodation of sound level produced by machines and is used for health safety purposes in industries. Further, this Mini Digital Sound Level Meter can be availed by our prestigious clients in varied specifications as per their requirement at pocket friendly price.

Features:

  • Accurate reading

  • Clear display screen

  • High strength

  • Simple applications


General Specifications:

  • This Unit Conforms To The Iec651 Type 2, Ansi Si.4 Type 2 For Sound Level Meter Has Been Designed To Meet The Measurement Requirements Of Safety Engineering's, Health, Industrial Safety Offices And Sound Quality Control In Various Environment.
  • Range From 30Db To 130Db At Frequencies Between 31.5Hz And 8Khz.
  • Display With 0.1B Steps On A 4-Digits LCD
  • With Two Equivalent Weighted Sound Pressure Levels, A & C


Electrical Specifications:

  • Standard applied         IEC651 type 2, ANSI S1.4 type 2

    Frequency range          31.5Hz -8KHz

    Measuring level range 30 - 130dB

    Frequency weighting   A/C

    Microphone                  ½ inch electrical condenser microphone

    Calibration                   Electrical calibration with the internal oscillator

                                            (1kHzsine wave)

    Display                         LCD

    Digital display              4 digits

    Resolution                   0.1 dB

    Display Up data           0.5 sec.

    Times weighting          FAST (125mS), SLOW (1 sec.)

    Level ranges                Lo: 30-100dB

                                           Hi:65-130dB

    Accuracy                      ± 1.5dB (under reference conditions)

    Alarm function             OVER is shown when input is out of range

    Maximum hold             Hold readings the Maximum Value, with

                                           decay< 1dB/3minutes.

    Power supply               One 9V battery, 006P or IEC 6F22 or NEDA 1604.

    Power life                    About 50hrs (alkaline battery)

    Operation temperature 0°C to 40°C(32°F to 140°F)

    Operation humidity      10 to 90% RH

    Storage temperature    -10°C to 60°C (14°F to 140°F)

    Storage humidity         10 to 75% RH

    Dimensions                  210 (L) x 55(W) x 32 (H)mm

    Weight                         230g (including battery)

    Accessories                 9Vbattery, carry case, Instruction manual
