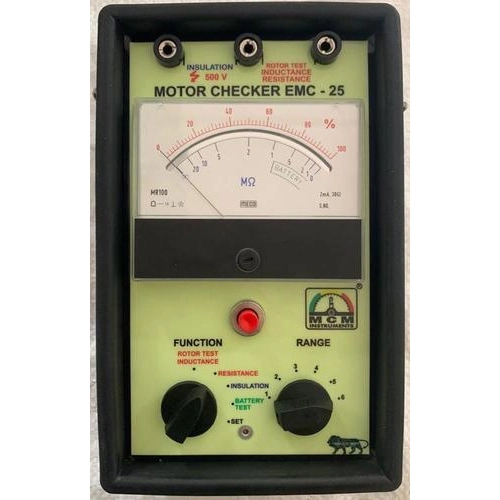

Electric Motor Checker EMC-25Plus
Electric Motor Checker EMC-25Plus

Electric Motor Checker EMC-25Plus

Price 21899 INR/ Number

Electric Motor Checker EMC-25Plus Specification

  • Product Type
  • Electric Motor Checker
  • Color
  • White
  • Dimension (L*W*H)
  • 210x125x65 Millimeter (mm)
  • Weight
  • 1000 Grams (g)


Electric Motor Checker EMC-25Plus Trade Information

  • Minimum Order Quantity
  • 1 Number
  • Supply Ability
  • 30 Per Month
  • Delivery Time
  • 7 Days
  • Main Domestic Market
  • All India


About Electric Motor Checker EMC-25Plus

Electric Motor Checker EMC-25Plus

Features:

  • Insulation Resistance Measurement (IR)
  • Identify open and short circuits/loose connections in a winding coil
  • Identify inter turn shorts.
  • Detect rotor bar problems without dismantling the rotor
  • Inductance of the winding with respect to different positions for rotor for detecting blow holes or cracks in the rotor bars.
  • Simple operation, accurate & quick assessment of motor condition.
Fast Checks of On-Line Motors:

  • EMC-25 Plus is a portable diagnostic tool for Electrical Engineer and is used for quick on site checks of electric three-phase machines.
  • A reduction in machine performance, such as inefficient operation or tripping of overloads, may indicate mechanical or electrical faults. If the fault is electrical the EMC-25 Plus will immediately detect it, without having to dismantle the equipment.

  • The instrument has three separate operating modes to measure different types of fault like fully insulation, open circuits / loose connections, short circuits and rotor defects. Motor insulation is tested with a high voltage of 500V DC supplied by the instrument.


Technical specifications :

Insulation Resistance: 5%

0-20 Meg ohms at 500 VDC, max. current 0.25mA

Resistance: 2%

0-200 ohms in 6 ranges(0.2 ,0.6 , 2, 6, 20 & 200) F.S.D.

Inductance: 2%

0-1000mH in 6 ranges (3mH, 10mH, 30mH, 100mH 300mH & 1000mH F.S.D.)

Operating Temp. range

0 - 55 C

Size

210x125x65

Weight

1000gms (Approx.)

Power

1.5V x 6AA size cells

Standard Supply:

1) Motor Checker EMC-25,

2) Test Leads (Clips)-1set,

3) Batteries-6 No.s,

4) Test & Calibration Report with Warranty/ Guarantee Certificate,

5) Manual &

6) Carry Case
