Digital Vibrometer VIB-40

Get a Price/Quote

Digital Vibrometer VIB-40 Specification

Color
Red

Product Type
Digital Vibrometer VIB-40

Power Supply
9V - 6 F22

Usage
Industrial

Dimension (L*W*H)
135x70x25 Millimeter (mm)

Weight
200 Grams (g)

Digital Vibrometer VIB-40 Trade Information

Main Domestic Market
All India

About Digital Vibrometer VIB-40

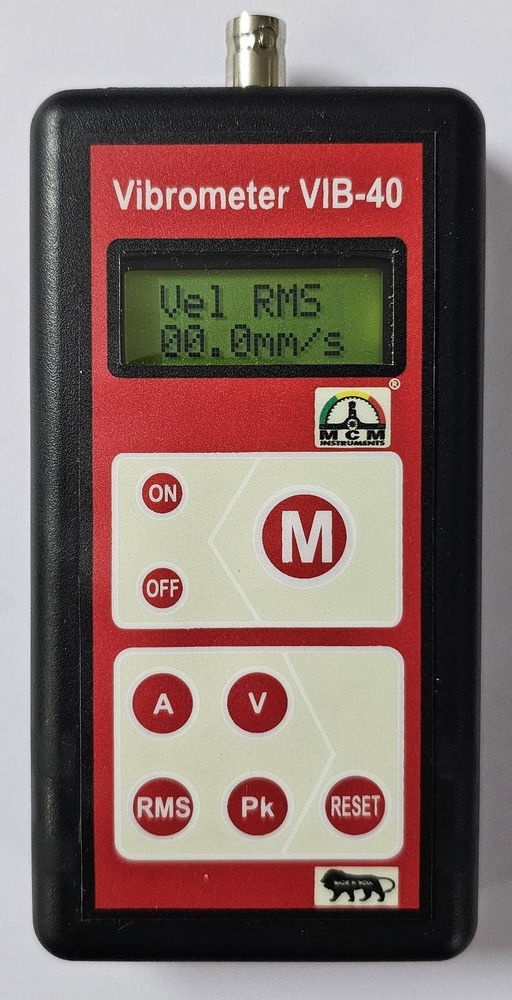

Vibrometer VIB-40

Features :

Measuring Vibration Velocity & Acceleration
True RMS measurement & Peak
Sealed Membrane key pad
Micro Controller based
Back Light Display
Auto Off
Battery Low Indication
Pocket size and Light weight

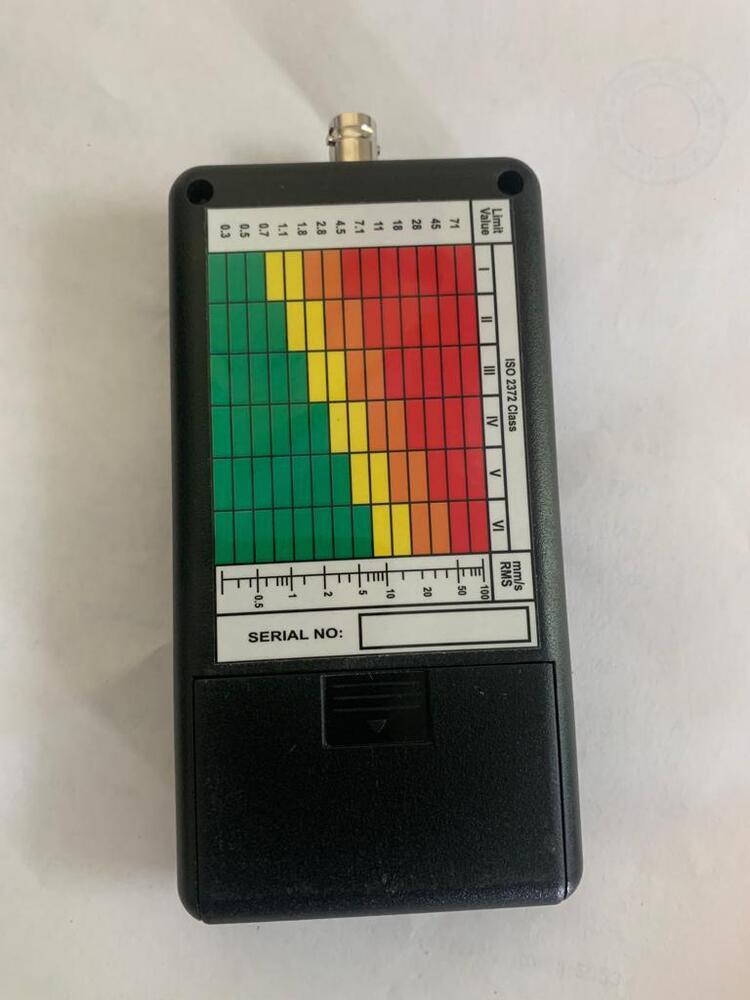

Vibrometer VIB-40 is Micro controller based and has been designed as simple diagnostic tool for preventive maintenance. The instrument and the monitoring techniques are based on the recommendations of ISO standard.

Need based maintenance is the latest trend of industry with which maintenance costs are low and life machinery is most optimum. Condition monitoring is basic need for need maintenance.

The above useful measurements are possible with Vibrometer VIB-40.Velocity and acceleration modes allow a user to perform basic vibration analysis.

Technical Data :

Velocity Measuring Range	0.1 to 199.9 mm/sec True RMS & 282 mm/s Peak
Accuracy	+/-(2% + 0.1mm/s)
Acceleration Measuring Range	0.1 to 199.9 m/sec & 282 m/s Peak
Accuracy	+/-2 (2% + 0.1m/s)
Resolution	0.1 mm/s
Frequency response	10HZ - 1KHZ
Power Supply	9V - 6 F22
Display	2 x 8 Dot Matrix LCD Large Characters with back light
Auto Off	Yes
Battery Low Indication	Yes
Weight	200gms

Size 135x70x25mm

Standard Supply :

Vibration Tester VIB-40 with Protective Pouch
Vibration Transducer (Accelerometer) - Magnetic Base - Hand Held Probe Rod - Low Noise Cable with Connectors (1.5 Mtrs),
Manual with Warranty/Guarantee Certificate,
9V Battery (Alkaline),
Test & Calibration Report
Carry Case

Download Catalog

Precise Industrial Vibration Measurements

The VIB-40 digital vibrometer is engineered to deliver dependable vibration analysis for industrial environments. With its lightweight build and compact form, technicians can quickly assess equipment vibration levels, improving maintenance efficiency and preventing unexpected downtimes.

Versatile Application Across Industries

Whether you are a distributor, supplier, or manufacturer, the VIB-40 is your solution for comprehensive vibration diagnostics. Its ergonomic design allows easy use on machinery, engines, and structural units, making it a trusted tool for a variety of industrial sectors throughout India.

FAQs of Digital Vibrometer VIB-40:

Q: How does the Digital Vibrometer VIB-40 function in industrial usage?

A: The VIB-40 measures vibration levels in industrial machinery and structural components, helping detect imbalances, misalignments, or mechanical faults to enhance operational safety and efficiency.

Q: What is the process for using the VIB-40 on site?

A: Simply power the device with a 9V - 6 F22 battery, place the sensor on the targeted machinery, and view real-time vibration readings on the digital display. Its compact dimensions allow ease of use in space-restricted environments.

Q: When should I use the VIB-40 for equipment monitoring?

A: It should be used during routine maintenance checks, after repairs, or whenever abnormal vibration is suspected, allowing for timely intervention and minimizing equipment downtime.

Q: Where can I purchase or source the VIB-40 in India?

A: The VIB-40 is obtainable from various distributors, wholesalers, manufacturers, and suppliers across India. It is exported and distributed nationwide by reputable industrial equipment providers.

Q: What are the key benefits of utilizing the Digital Vibrometer VIB-40?

A: Its precise measurements, portable design, and ease of operation make it invaluable for reducing unexpected failures, optimizing machine performance, and supporting preventive maintenance strategies.

Q: Is the VIB-40 suitable for service providers and traders as well as manufacturers?

A: Yes, the VIB-40s reliability and versatility make it ideal for a range of users, including service providers, traders, and manufacturers, offering consistent results for industrial vibration diagnostics.
